Processor parameter for referance only
Processors
|
Cores & Threads
|
Cache
|
Base Frequency
|
Max Turbo Frequency
|
Xeon D-1581
|
16 cores, 32 threads
|
24M
|
1.80 GHz
|
2.40 GHz
|
Core i5-9400F
|
6 cores, 6 threads
|
9M
|
2.90 GHz
|
4.10 GHz
|
Core i7-9700F
|
8 cores, 8 threads
|
12M
|
3.00 GHz
|
4.70 GHz
|
Core i7-9750H
|
6 cores, 12 threads
|
12M
|
2.60 GHz
|
4.50 GHz
|
Core i7-8750H
|
6 cores, 12 threads
|
9M
|
2.20 GHz
|
4.10 GHz
|
Core i7-7820HQ
|
4 cores, 8 threads
|
8M
|
2.90 GHz
|
3.90 GHz
|
Specification

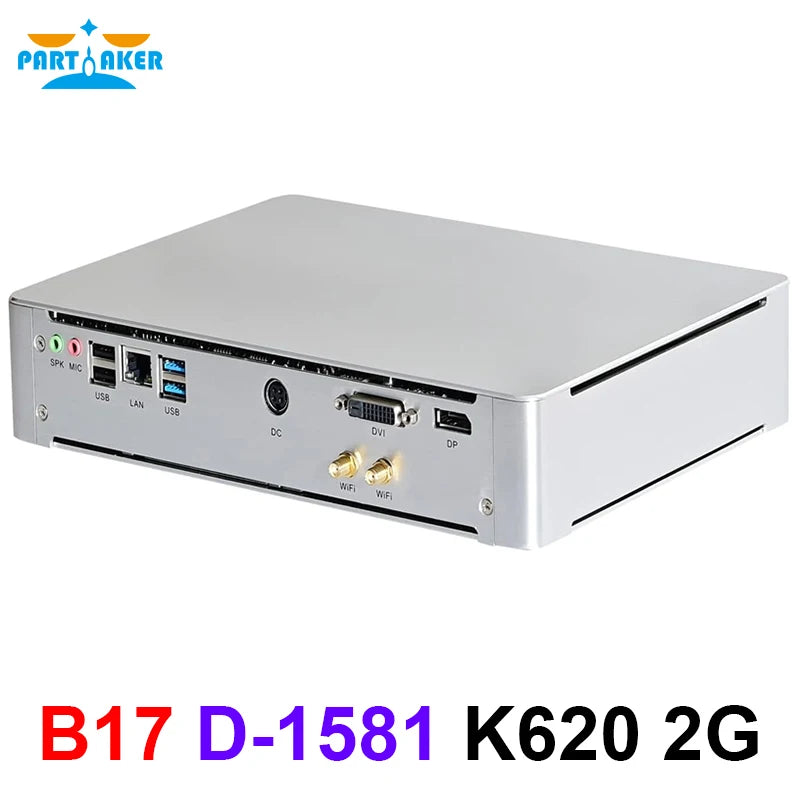

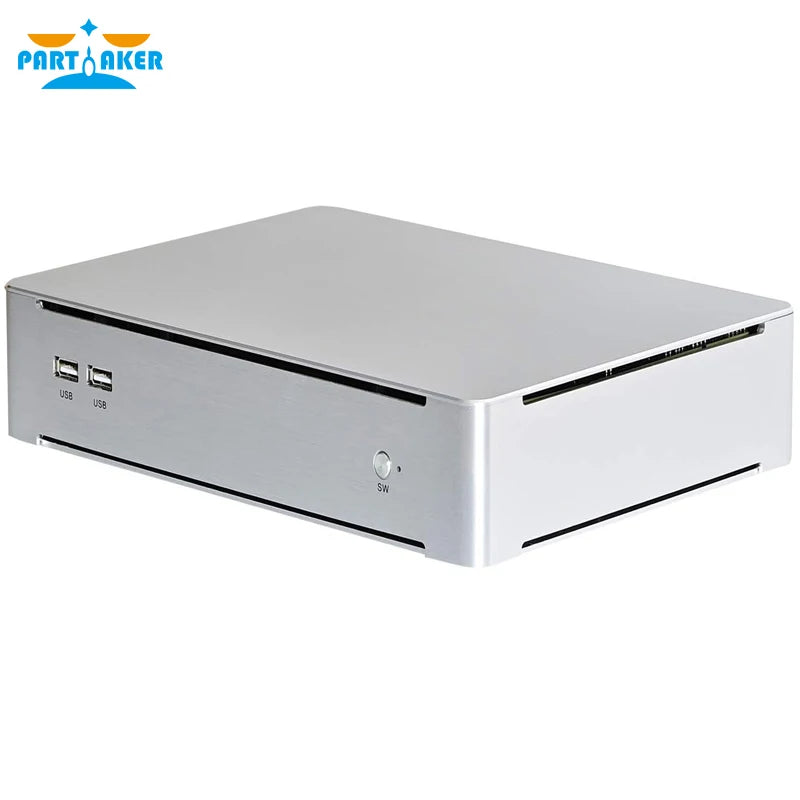

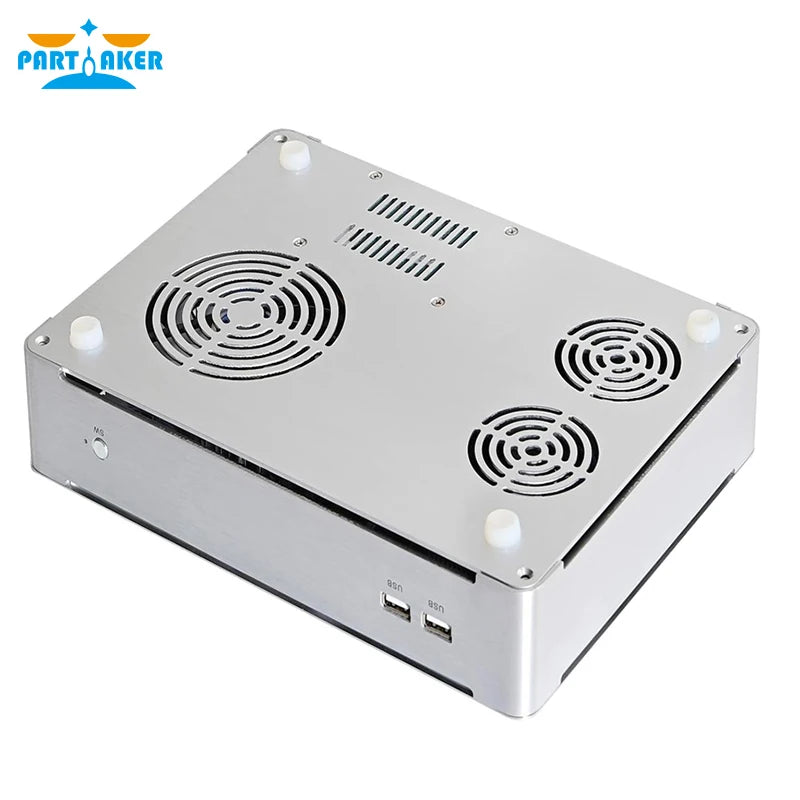

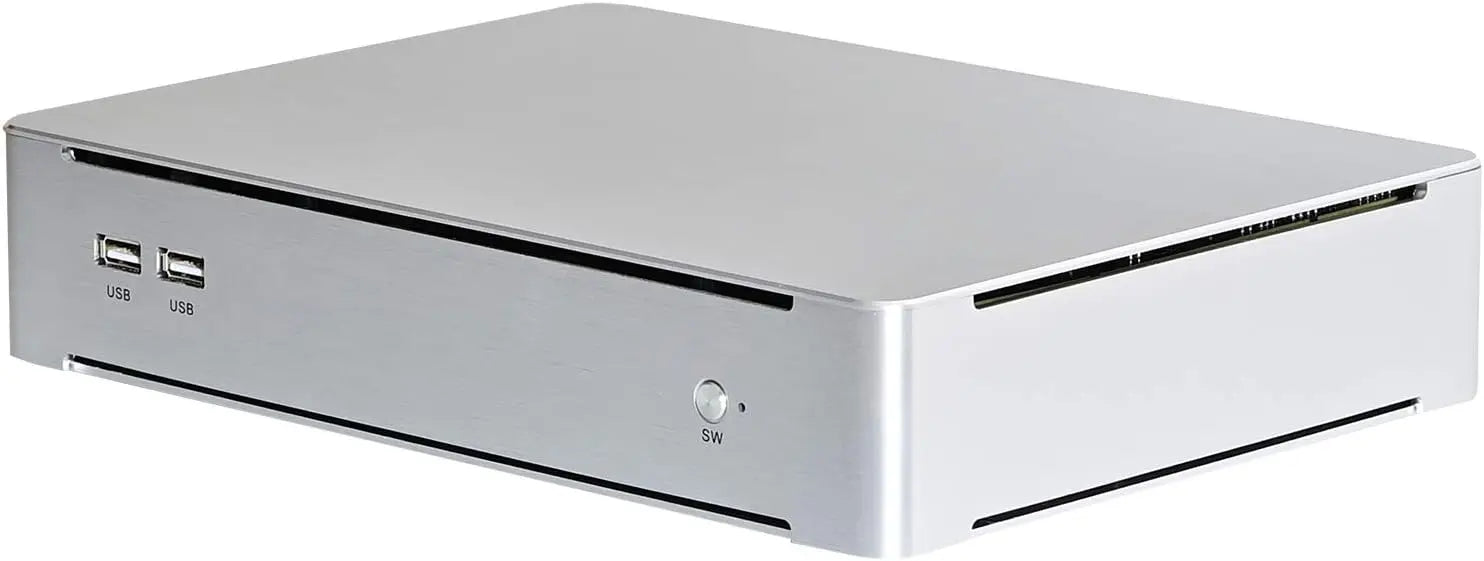

Model Number: Partaker B17
Material: Aluminum
CPU: Intel Xeon Processor D-1581 24M Cache, 1.80 GHz (16 cores 32 threads)
Discrete Graphics Card: NVIDIA Quadro K620 2G GDDR3 128bit dual fan
Memory: 2 x SODIMM DDR4-2133, Max. 64GB
Storage: 1 x M.2 2280 SATA SSD, 1 x M.2 2280 NVME SSD, 1 x 2.5 inch SATA SSD/HDD
M.2: 1 x M.2 PCIE WiFi module
Audio: ALC662
Network: Intel I210 Gigabit Lan
WiFi: 802.11ac 2.4 and 5Ghz

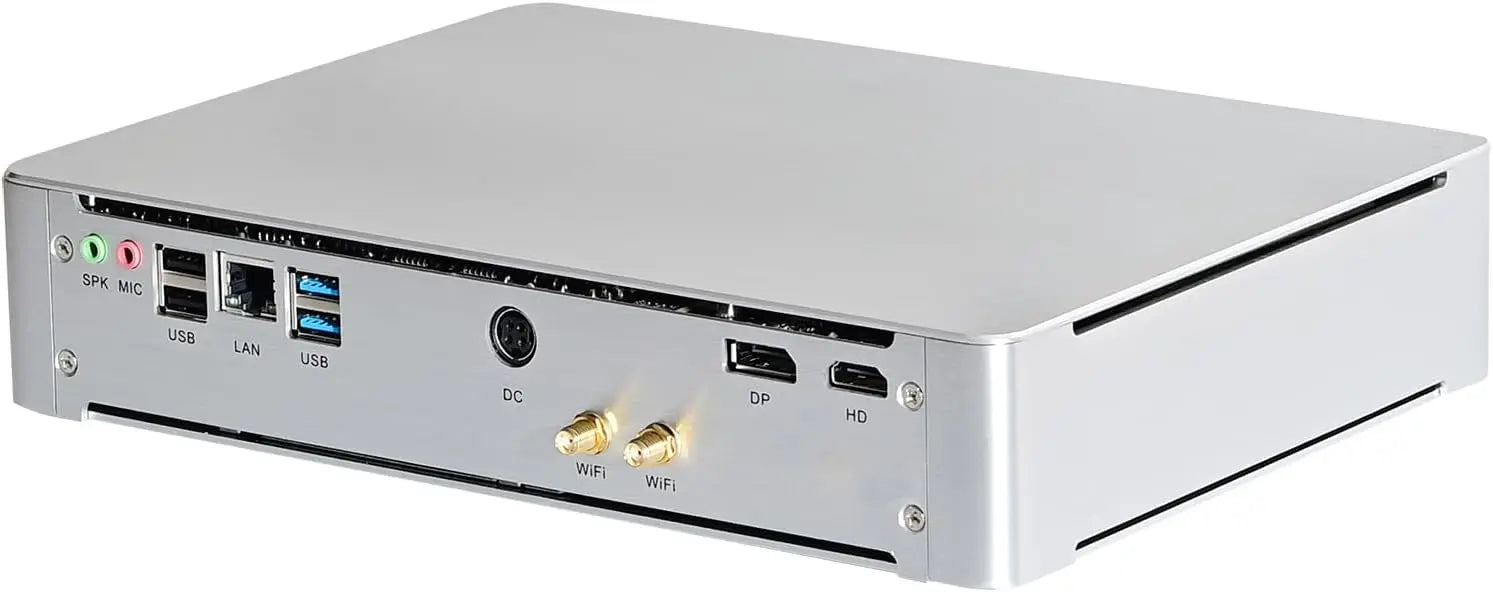

I/0 Port: DVI, DP, 19V DC, LAN, 2 x USB 3.0, 4 x USB 2.0, Spk, Mic
Power: DC100-240V AC/50-60Hz, 19V/7.1A
Operating Temperature: 0°C~70°C Centigrade
Storage Temperature: -20°C~80°C Centigrade
Relative Humidity: 10%~90% (non-condensing)
TDP: 65W

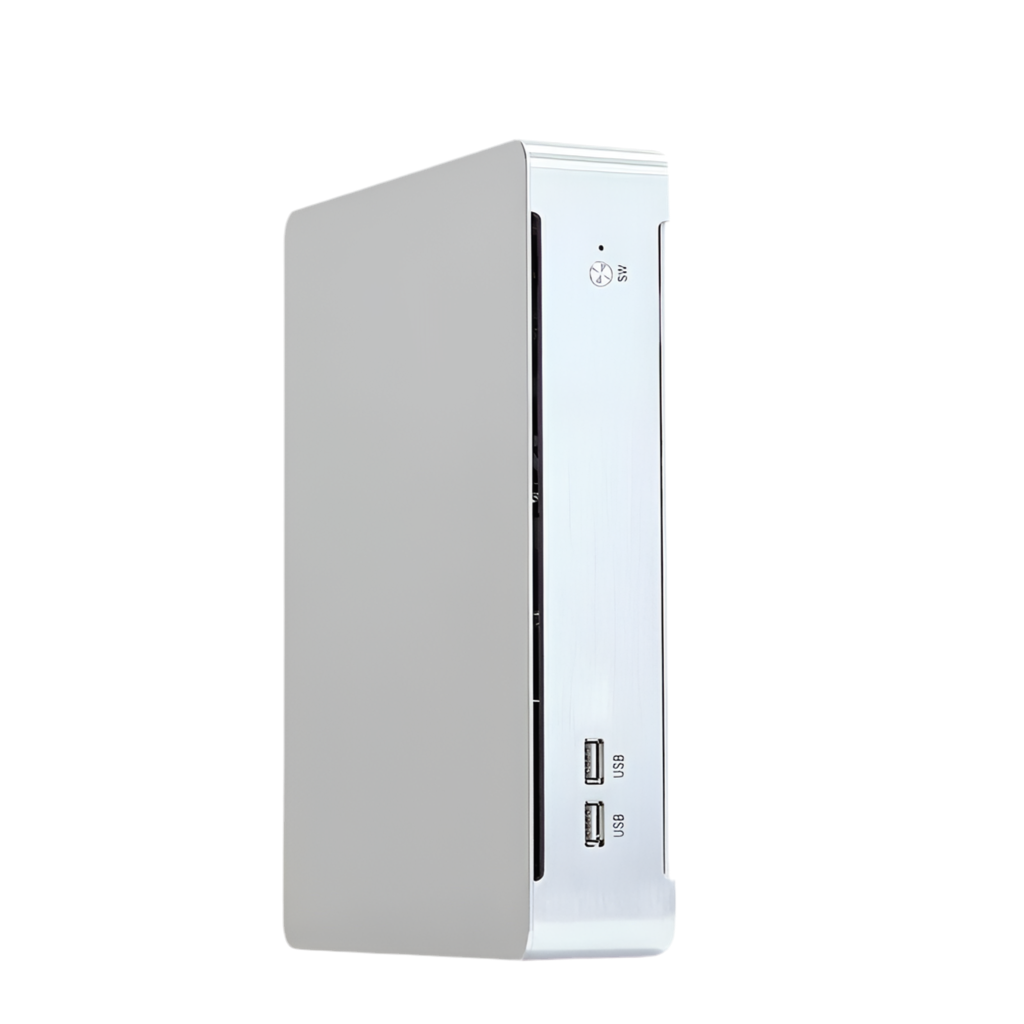

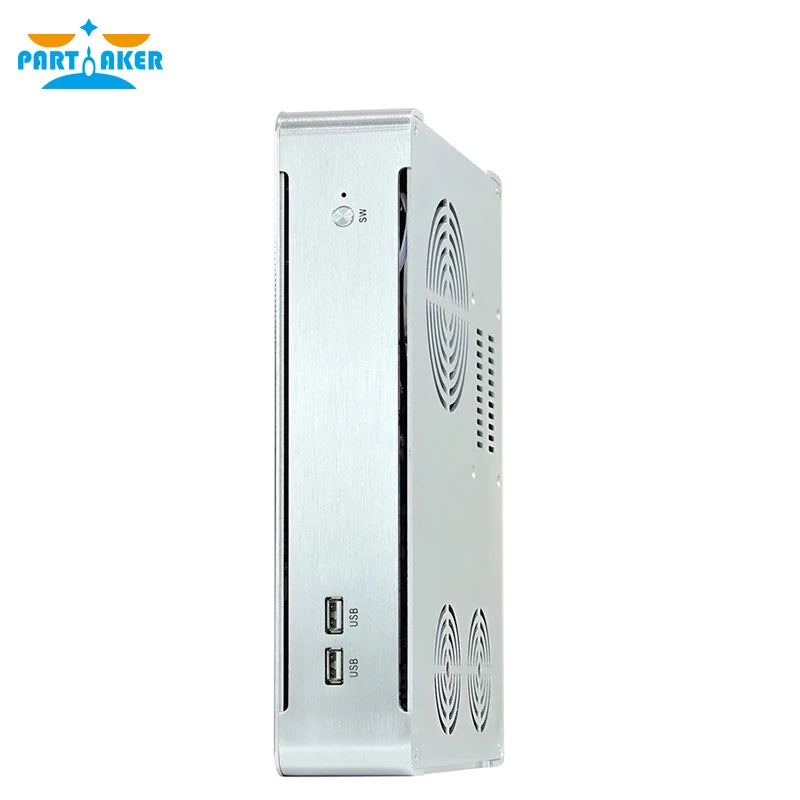

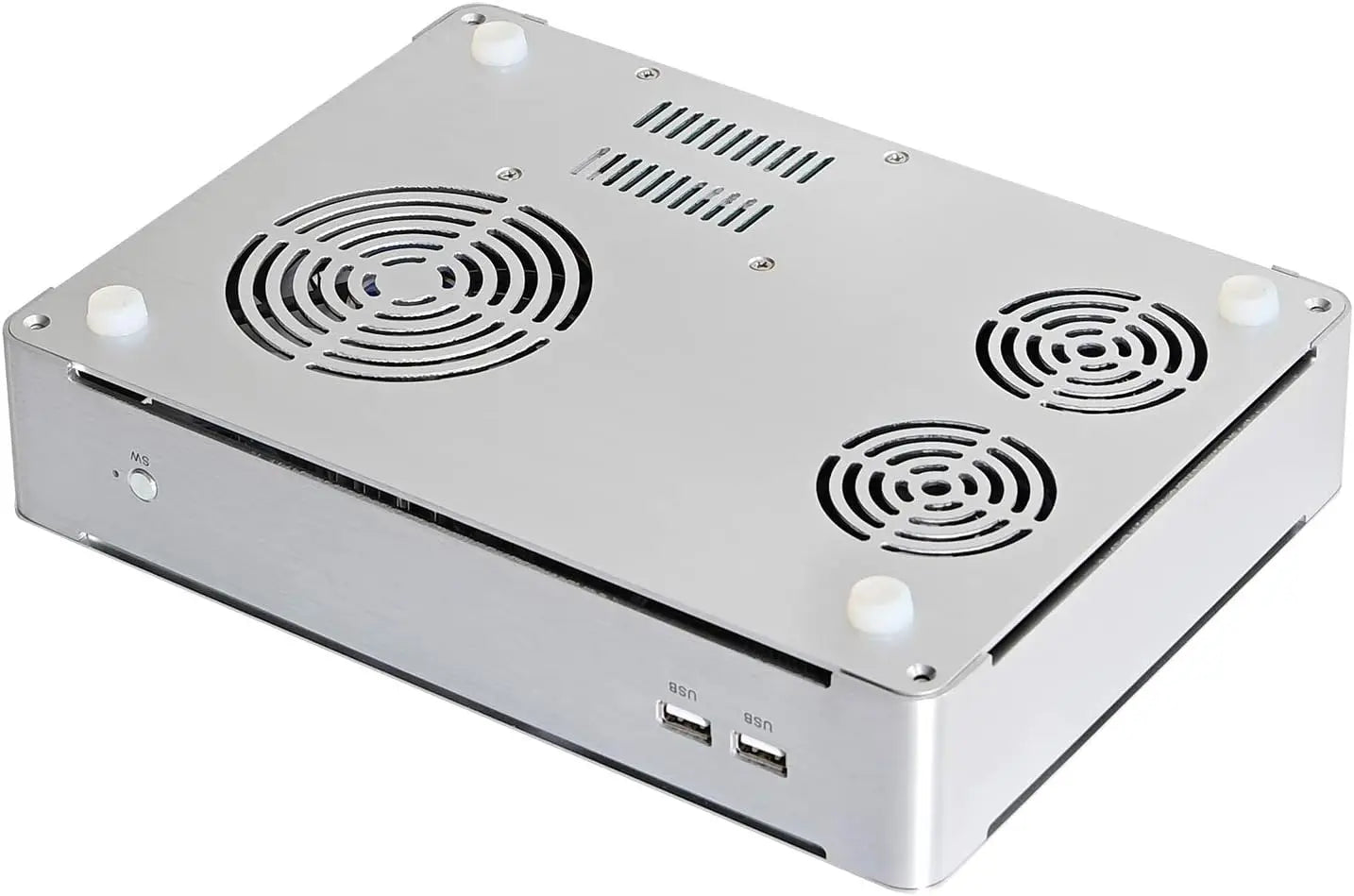

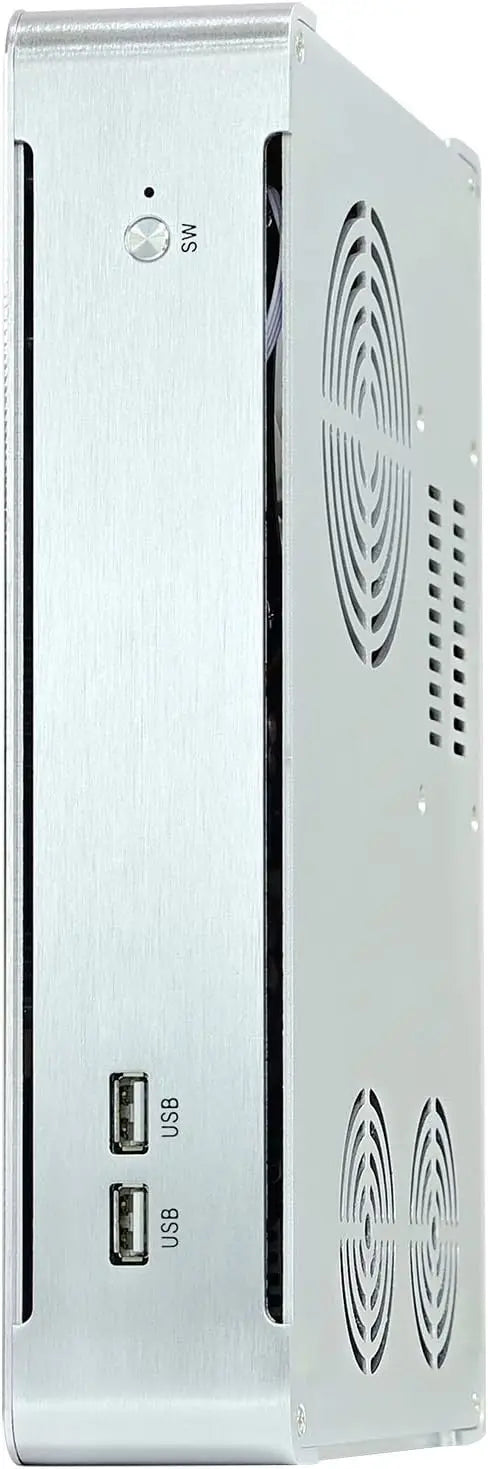

Cooling system: Smart silent fan, sound below 25 decibels (place it vertically to reduce the fan speed & sound effectively)
Weight: 3.5kgs
Measurement: 280 x 200 x 52mm
Packing List: B17 server pc, power supply, power cord, vertical stand, WiFi antennas, warranty card
Function: 1.Support diskless boot
2.Support Restore AC Power Loss
3.Support dual display out (DP and DVI) for simultaneous display or synchronous different display
4.Max. to 8K output, 4K DP1.4, DVI-D
5. Support DP to HDMI transfer
System Support: Windows 10/11, Linux Ubuntu, Vxworks etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.

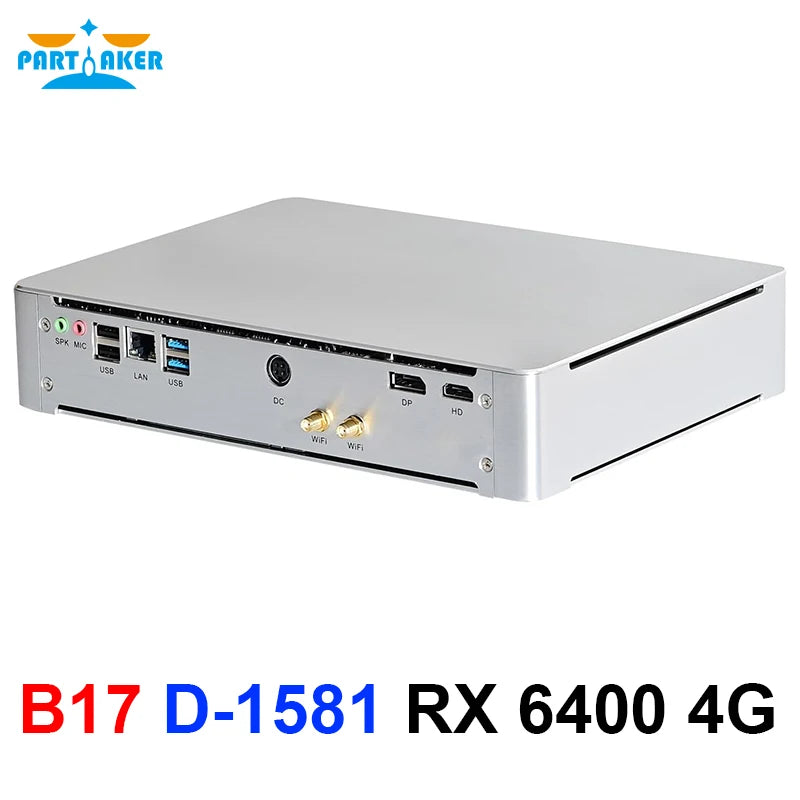

Model Number: Partaker B17
Material: Aluminum
CPU: Intel Xeon Processor D-1581 24M Cache, 1.80 GHz (16 cores 32 threads)
Discrete Graphics Card: AMD Radeon RX 6400 4GB 64bit GDDR6
Memory: 2 x SODIMM DDR4-2133, Max. 64GB
Storage: 2 x M.2 2280 NVME SSD, 1 x 2.5 inch SATA SSD/HDD
Audio: ALC662
Network: Intel I210 Gigabit Lan
I/0 Port: DP1.4a, HDMI2.1, 19V DC, LAN, 2 x USB 3.0, 4 x USB 2.0, Spk, Mic
Power: DC100-240V AC/50-60Hz, 19V/9.5A
Operating Temperature: 0°C~70°C Centigrade
Storage Temperature: -20°C~80°C Centigrade
Relative Humidity: 10%~90% non-condensing
TDP: 65W

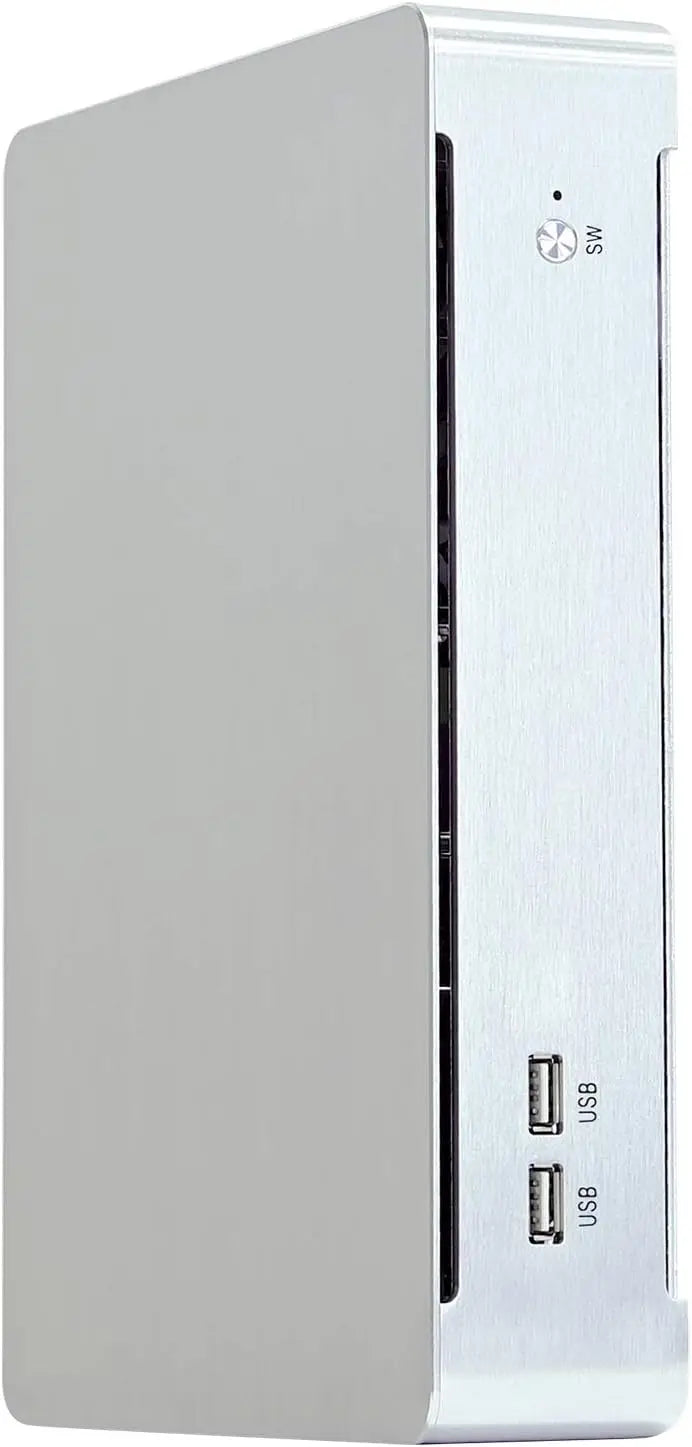

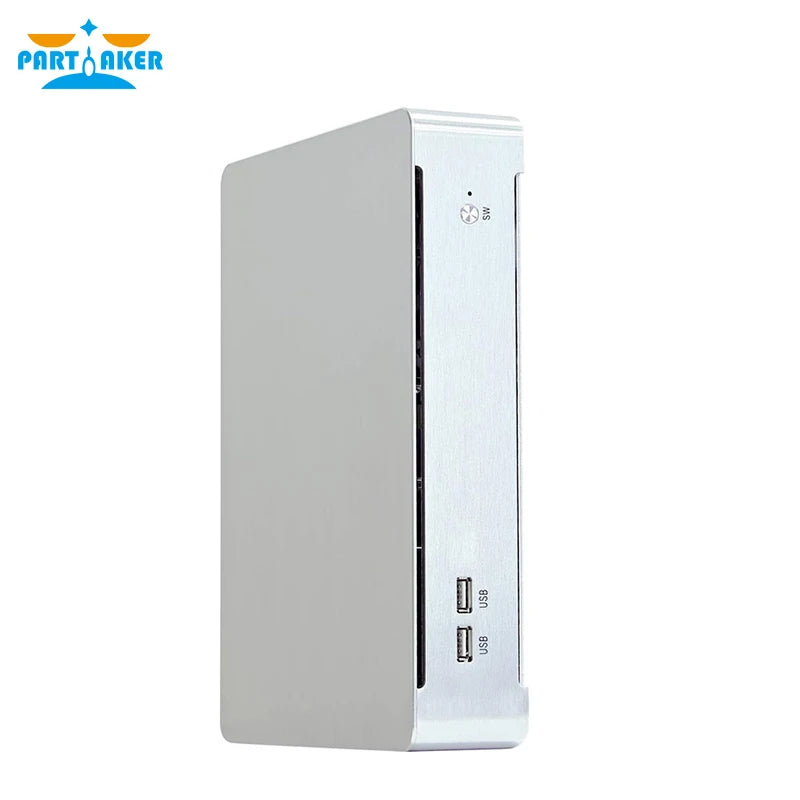

Cooling system: Smart silent fan, sound below 25 decibels, place it vertically to reduce the fan speed & sound effectively
Weight: 3.5kgs
Measurement: 280 x 200 x 52mm
Packing List: B17 mini pc, power supply, power cord, vertical stand, WiFi antennas, warranty card
Function: 1.Support diskless boot
2.Support Restore AC Power Loss
3.Support dual display out, DP, HDMI for simultaneous display or synchronous different display
4.Max. to 8K output, 4K DP1.4a, HDMI2.1 up to 7680 x 4320@60hz
System Support: Windows 10/11, Linux Ubuntu, Vxworks etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you

Free Operating System: Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.
About Power Cord:
We will ship the type of power cord, based on your area.
AMD Radeon RX 6400 4G Graphic
NVIDIA Quadro K620 2G Graphic
